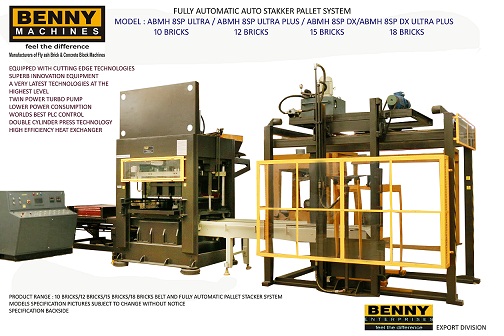

MODEL - ABMH 8 SP SUPER ULTRA AUTO STACKER PALLET SYSTEM HEAVY PRESSING.
| Hydraulic Motor | 15 H.P./11.25 KW? |
| Brick Eject Motor | 1 H.P./0.75 KW? |
| Heat Exchanger | 1 H.P./0.75 KW? |
| Conveyor System | 3 H.P./2.25 KW? |
| Pan Mixer Machine | 20 H.P./15 KW? |
| Hydraulic Stacker Motor | 3 H.P./2.25 KW |
| Stacker Travel Motor | 3 H.P./2.25 KW |
| Pallet Chain Conveyor | 1 H.P. 0.75 KW |
| System? | Hydraulic Free Fill? |
| Dimension | H-2800 x W-1500 x L-2800? |
| Weight?? | 8500 KG? |
| Fully PLC Control? | |
| Sliding Rod | OD 50 EN8 Grinded Hard Chromed |
| No: of Cylinders | 6 No`s? |
| Sliding Bush | Steel Casting |
| Main Cylinder? | OD 200 x 350 x 1100? |
| Side Cylinder? | OD 80 x 50 x 350? |
| Ejector Cylinder? | OD 50 x 35 x 1100? |
| Max Pressure | 220+220 = 440 BAR |
| Hydraulic Pump | Turbo Twin Vain System |
| Cycle Time | 15 seconds |
| Ejector Conveyor | Tough Polymer Easy Changeable |
