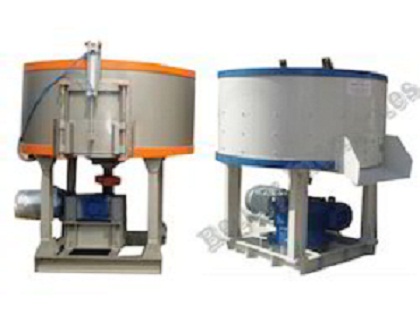

Special Type Pan Mixing Machine with Solenoid Control Pneumatic Door System fitted with Rossi (Italy) high efficiency Bevel Helical Gear Box and 15 H.P Motor.
Specifications for Pan Mixer
| Capacity | 750 Kgs |
| Drum Height | 900 X 1700MM |
| Total Height | 1600mm |
| Inner Liner | 6 x 2000mm |
| Bottom Ware Plate | 6mm : 4 no's |
| Bottom Ware Plate | 16mm |
| Side Plate | 200 x 6mm |
| Main Housing Rod | 100mm |
| Tapper Roller Bearing | 2 no`s |
| Thrust Bearing | 1 no |
| Mixing Blade Arms | 2 no`s. MS Plates with High Carbon Tips |
| Mixer Roller | 225 x 400mm : 2 no`s. Graded Cast Iron |
| Cast Iron Rollers | 2 no`s |
| V-6 Type Gear Box | 1:40 Ratio |
| Oil Capacity | SEA-300. 10 liters |
| Motor | 20 H.P. 1440 RPM |
| Belt Drive | Foot Mounted |
| Total Weight | 4.8 Tons |
Model Specifications subject to change without notice for Improvement.
